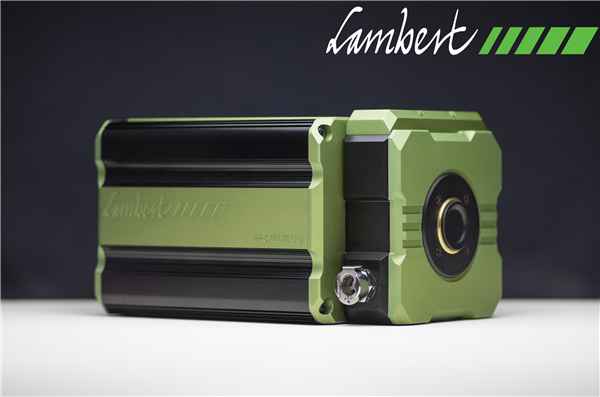

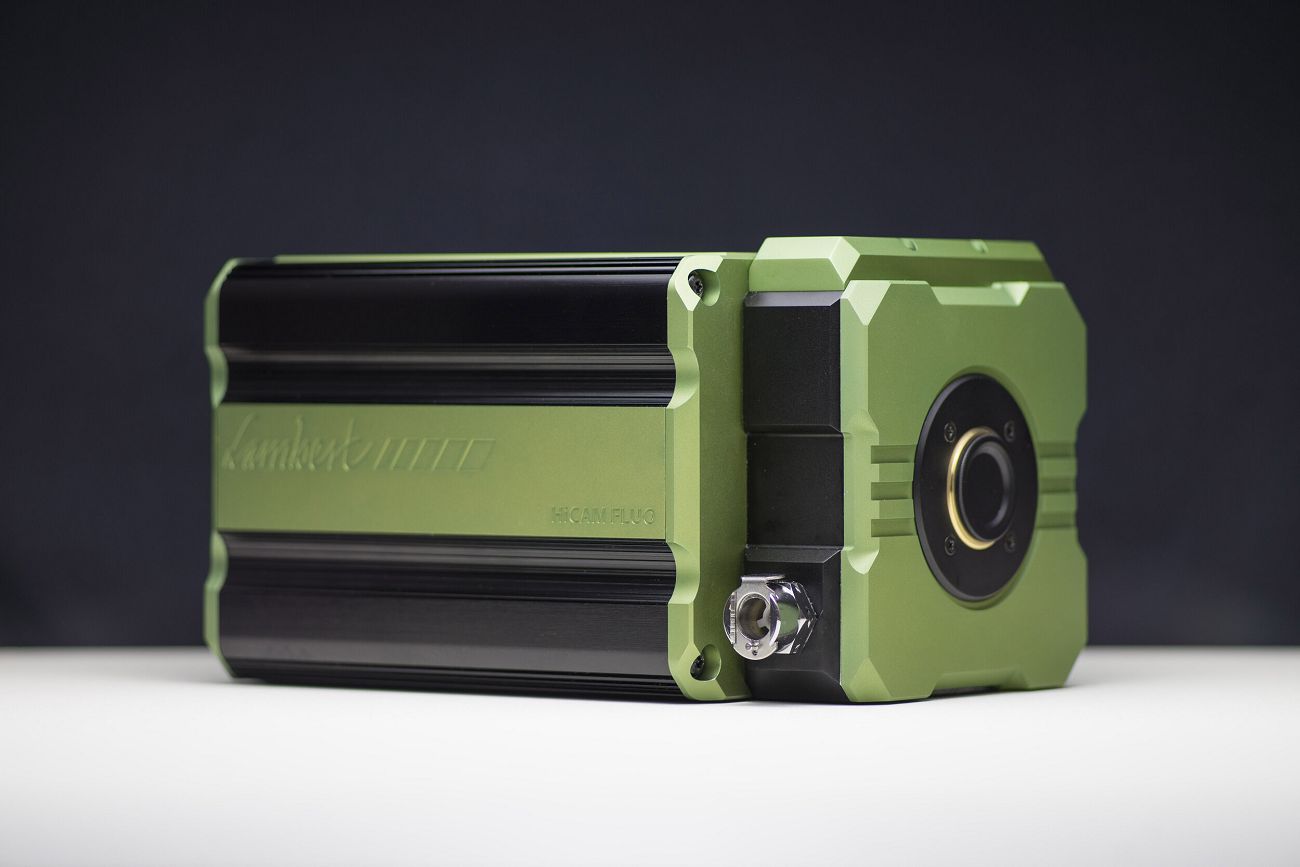

Lambert 超高速螢光影像擷取相機

HiCAM FLUO 有兩款, 1000 fps 及 2000 fps.
是超高速, 高感度, 冷卻式光子訊號增益放大的螢光影像擷取專用相機, 取像速率在全幅影像 (1920x1080 pixel) 可達最高 2000 fps.
超高速的時間閥門可程序控制可達 10 ns (FWHM), 瞬間影像擷取可消除瞬間震動產生的模糊., 應用到時間解析的影像擷取, 如 FLIM.
Model
HICAM FLUO, 1000 FPS
HICAM FLUO, 2000 FPS
Maximum resolution
 1280 x 1024 pixels 1920 x 1080 pixels
Frame rate 1000 fps at full resolution 2000 fps at full resolution
1500 fps at 1200 x 720 pixels 2500 fps at 1280 x 960 pixels
4000 fps at 640 x 480 pixels 5100 fps at 640 x 480 pixels
7500 fps at 256 x 256 pixels 6400 fps at 512 x 384 pixels
Pixel size 6.6 um 10 um
Pixel depth 10 or 12 bit 8 bit
Minimum exposure time 40 ns 40 ns
Gating repetition rate 100 kHz 100 kHz
Image intensifier Proximity-focused image intensifier* Proximity-focused image intensifier*
Photon gain (max.) 36000 lm/m^2/lx 36000 lm/m^2/lx
Computer interface Streaming CoaXPress Streaming CoaXPress 2.0
