灰階數位相機
LEICA K8 ( 取代 DFC9000 )

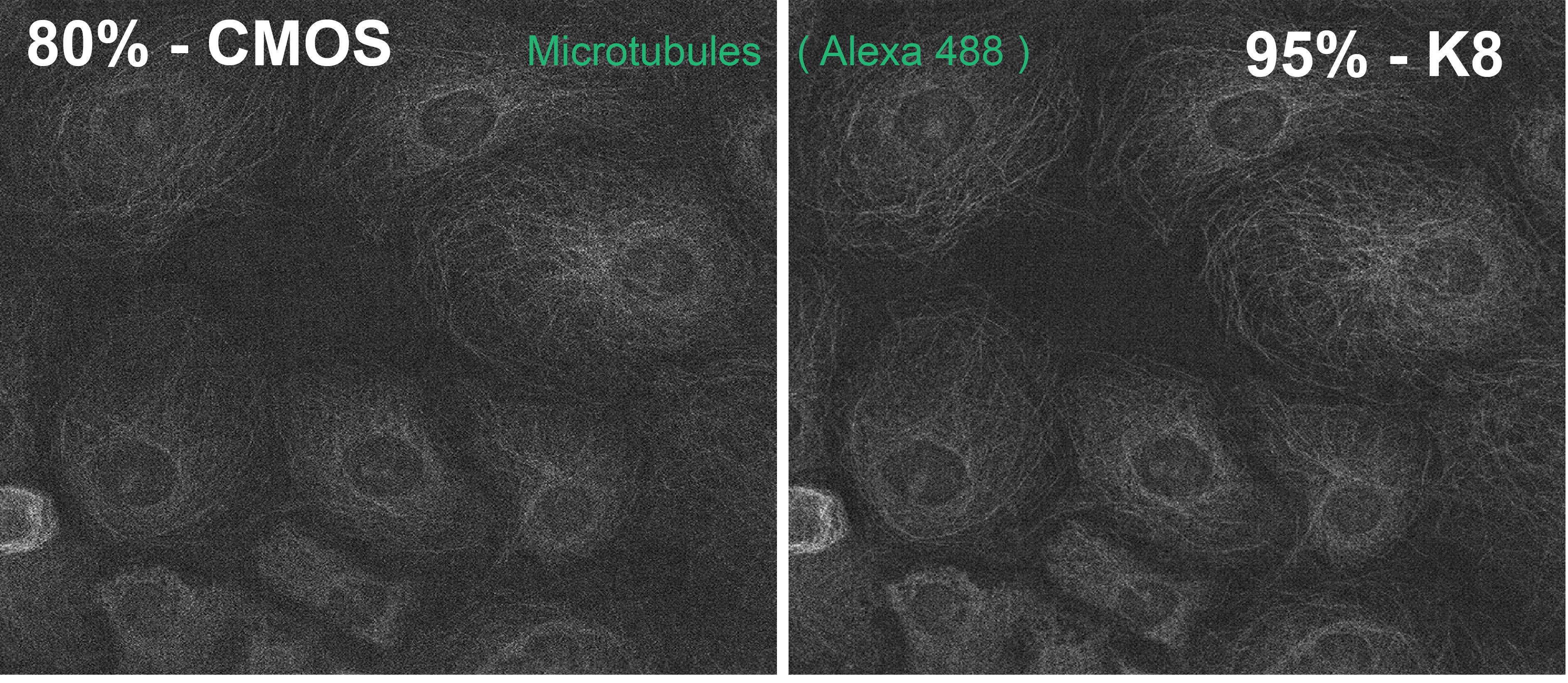

冷卻式灰階 G-pixel 技術, Scientific CMOS 相機, 4.2 MP, 背照式 95% QE, 高速高解析, 極端靈敏, 適宜低光螢光拍照. K8 為超高速 95 fps ( USB3.0, Gen II ). 寬廣的動態範圍 25000 : 1 可以取得最佳的影像品質.

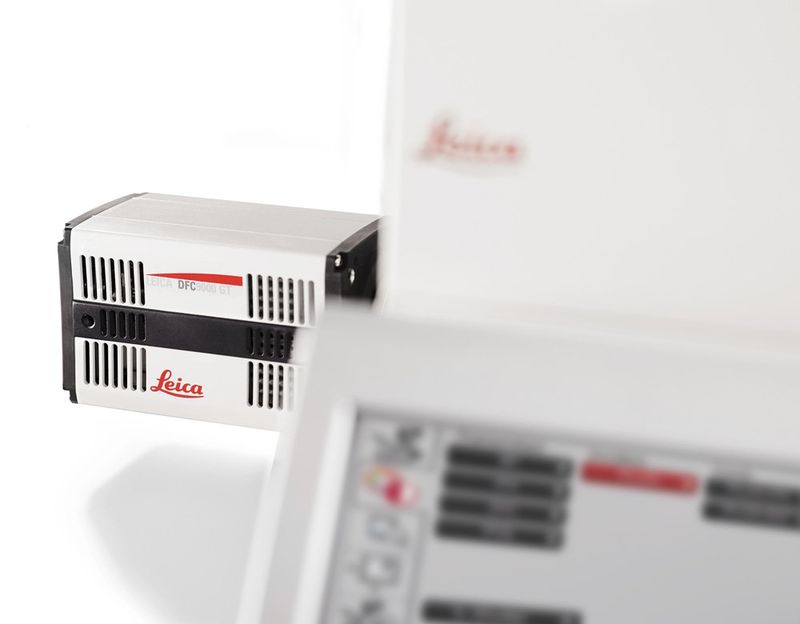

LEICA DFC7000

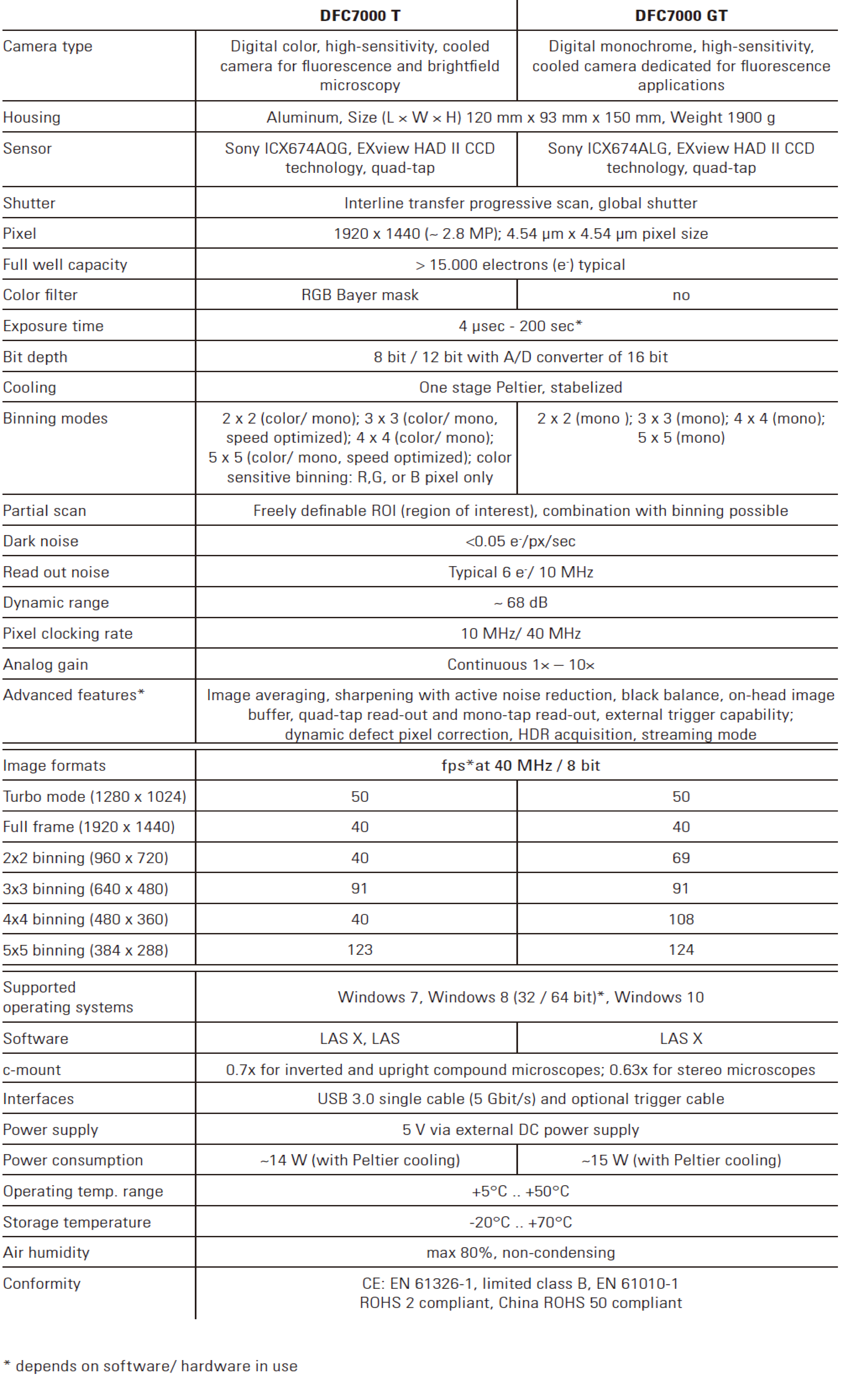

冷卻式灰階 CCD 相機, 2.8 MP, 高速高解析, DFC7000 GT 適宜螢光拍照., DFC7000 T 為彩色相機, 適宜 BF/FLUO 拍照.

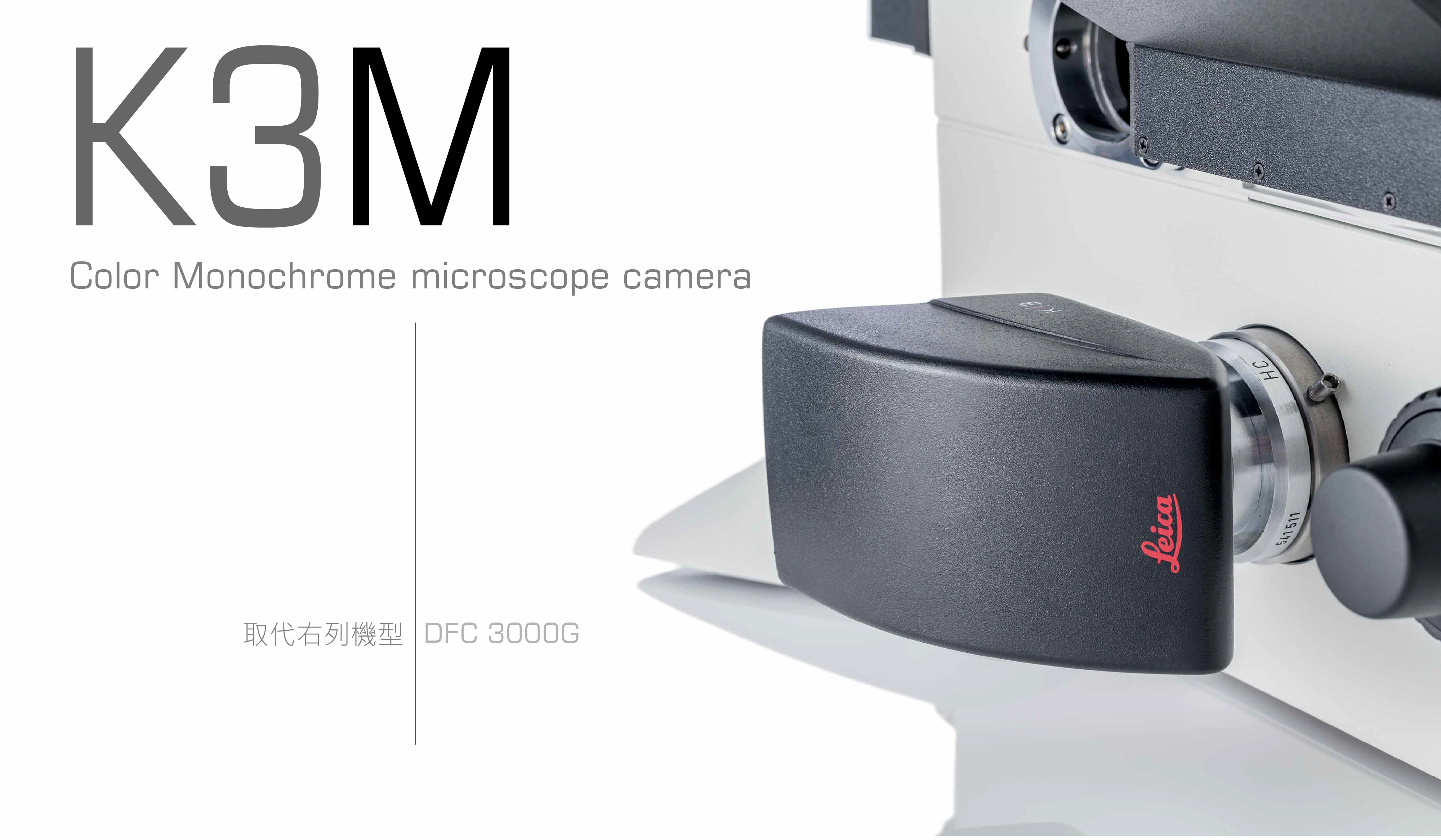

LEICA K3M 新問世 CMOS 灰階相機
適宜螢光拍照.

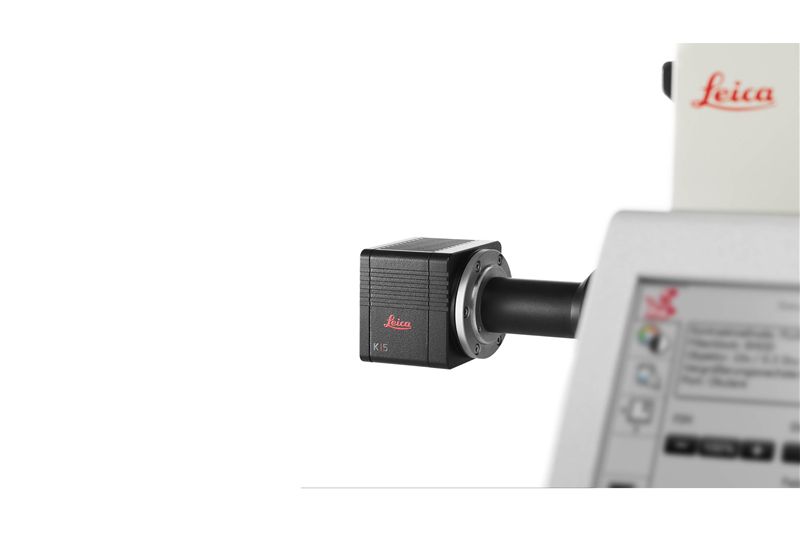

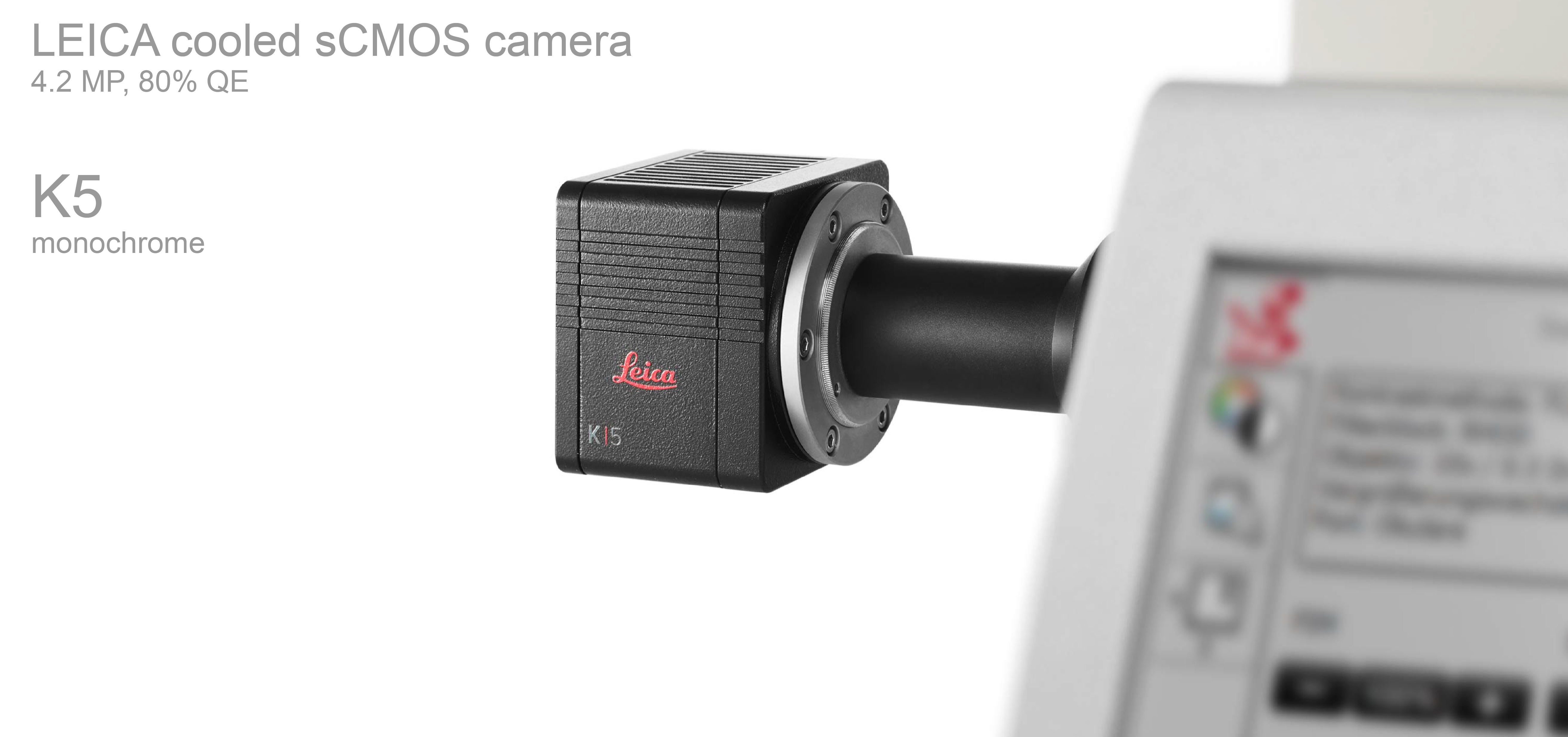

LEICA K5

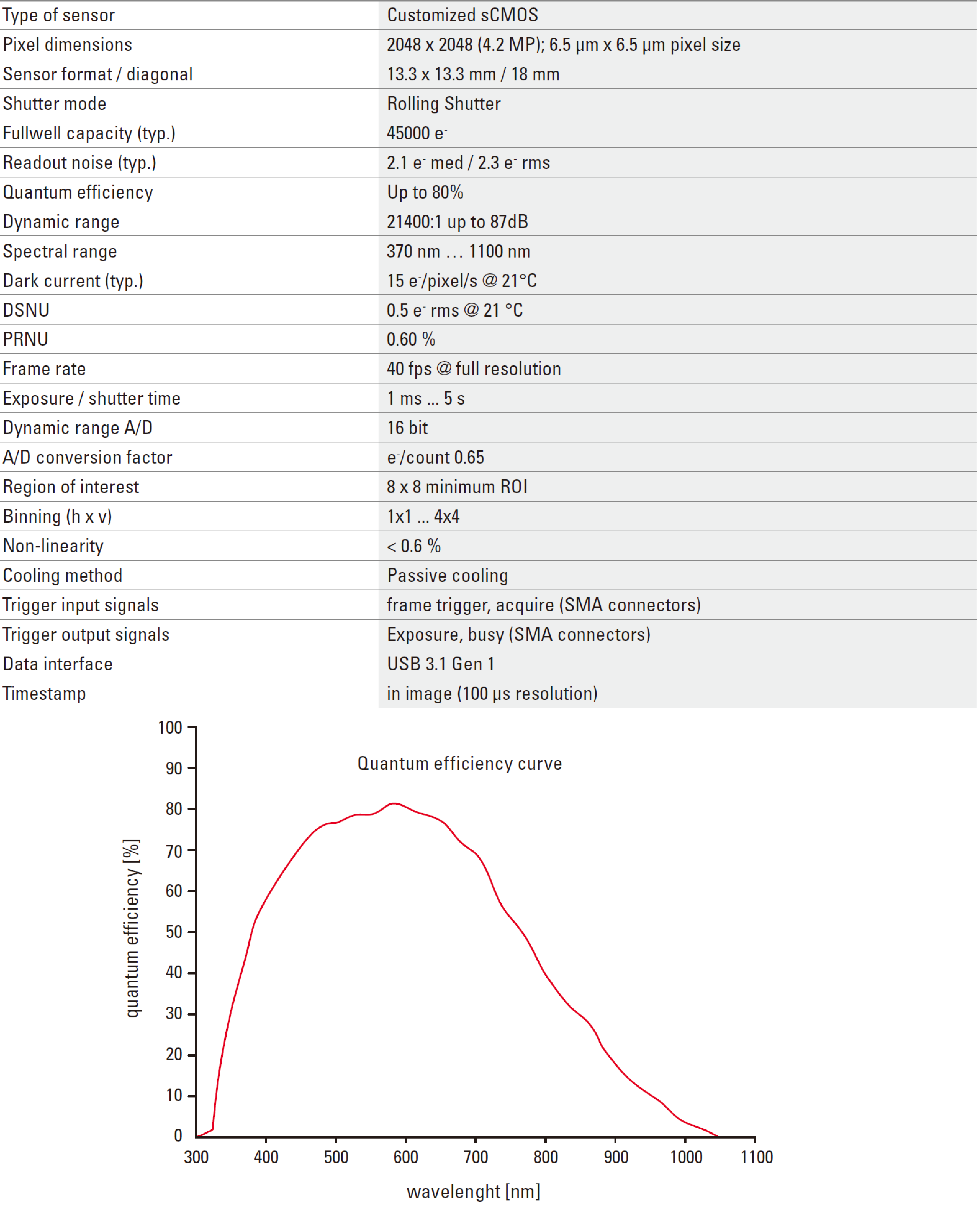

冷卻式灰階 sCMOS 相機, 4.2 MP, 高速高解析, 40 fps ( FULL Frame ), 適宜螢光拍照.
冷卻式灰階 G-pixel 技術, Scientific CMOS 相機, 4.2 MP, 背照式 95% QE, 高速高解析, 極端靈敏, 適宜低光螢光拍照. K8 為超高速 95 fps ( USB3.0, Gen II ). 寬廣的動態範圍 25000 : 1 可以取得最佳的影像品質.
LEICA DFC7000
冷卻式灰階 CCD 相機, 2.8 MP, 高速高解析, DFC7000 GT 適宜螢光拍照., DFC7000 T 為彩色相機, 適宜 BF/FLUO 拍照.
LEICA K3M 新問世 CMOS 灰階相機
適宜螢光拍照.
LEICA K5
冷卻式灰階 sCMOS 相機, 4.2 MP, 高速高解析, 40 fps ( FULL Frame ), 適宜螢光拍照.

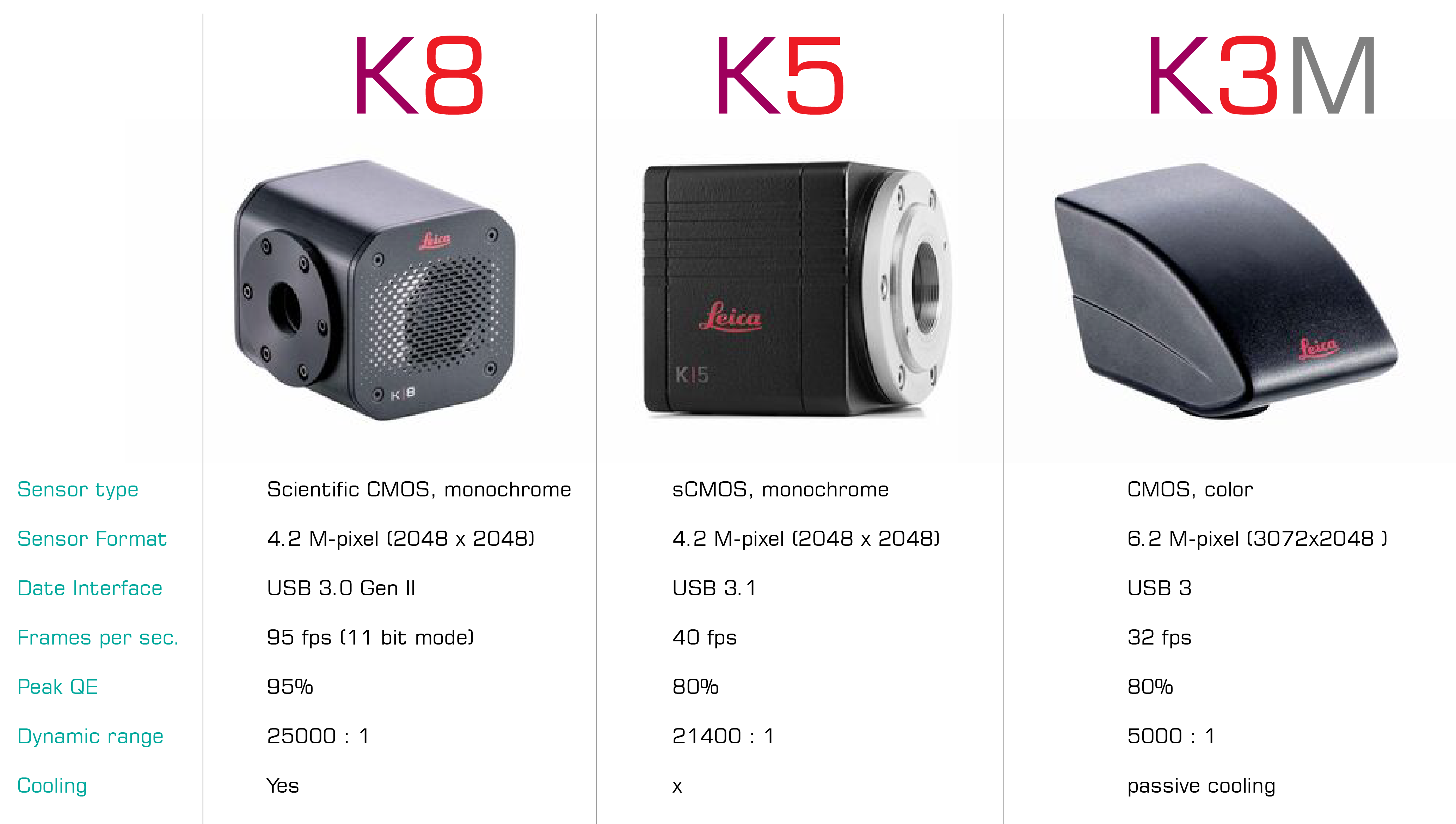

Technical Specifications
| Sensor type | Scientific CMOS |
| Senosr size (diagonal). | 18.8 mm |
| Sensor format | 2048 px x 2048 px (4.2 Megapixel) |
| Pixel dimensions | 6.5 μm x 6.5 μm |
| Shutter mode | Rolling shutter |
| Data interface | USB 3 Gen2 |
| Mechanical interface | C-mount |
| Exposure range | 1 ms - 10 s |
| Frames per second | 95 fps (in 11-bit mode) |
| Triggering | Yes, MMCX |
| Sensor cooling | -5 °C at 25 °C ambient |

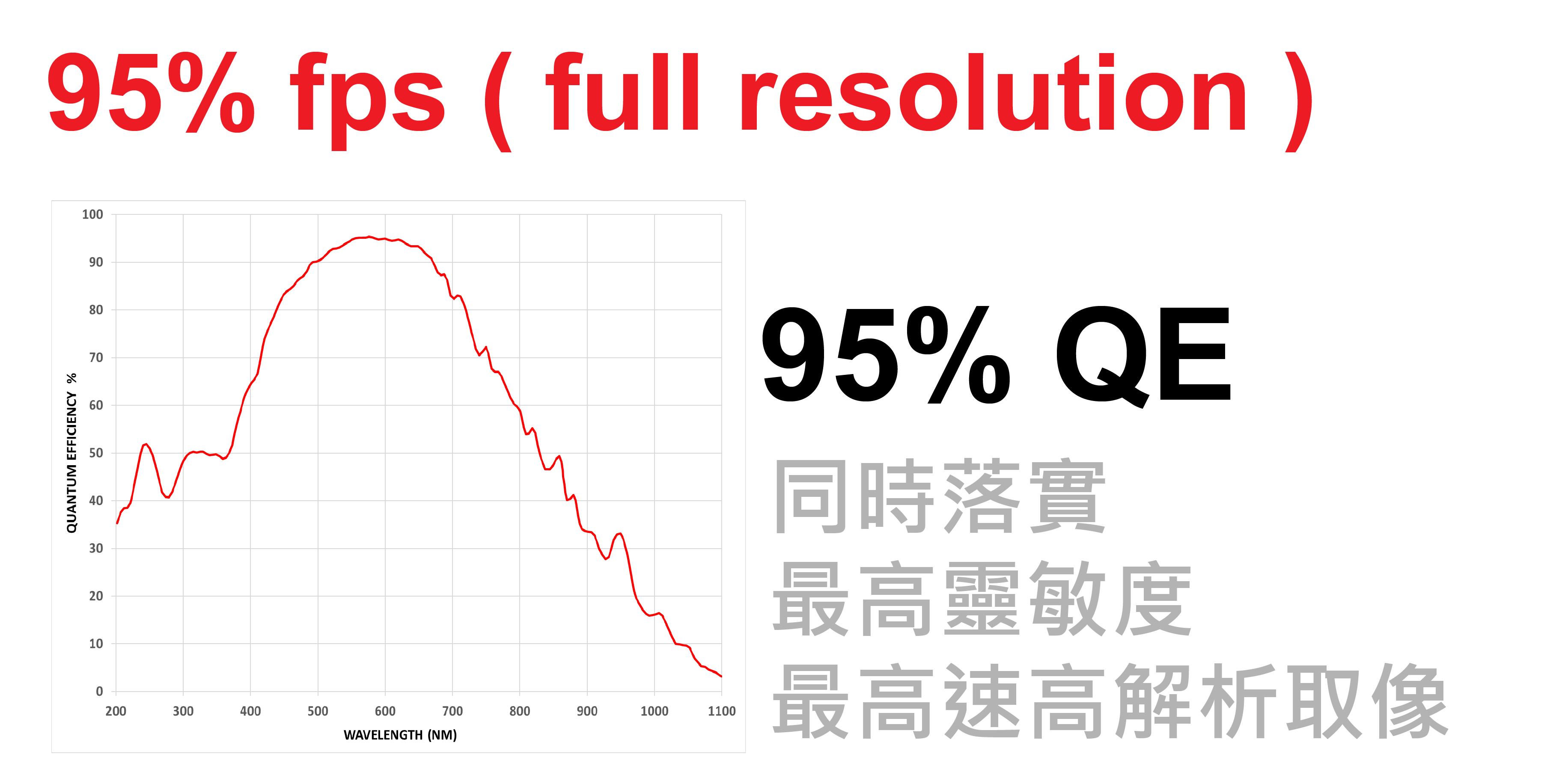

| Peak quantum efficiency | 95% |
| Dark current | 1.5 e-/pixel/second |
| Read noise |
12-bit 1.0 e- (median) 1.1 e- (RMS) 16-bit 1.6 e- (median) 1.8 e- (RMS) |
| Full well capacity | 45000 e- |
| Dynamic Range | 25000:1 |
| Bit depth / Colour depth | 16-bit, 12-bit, 11-bit, 8-bit |
| Binning options | 2x2 |
| Operating system | Windows with LAS X application |
| Power consumption | 60 W |
| Operation temperature | 5 °C - 40 °C |
| Sensor type | CMOS |
| Senosr size (diagonal). | 8.92 mm |
| Sensor format | 3072 px x 2048 px |
| Pixel dimensions | 2.4 μm x 2.4 μm |
| Shutter mode | Rolling, Global reset |
| Data interface | USB 3 |
| Mechanical interface | C-mount |
| Exposure range | 1 ms - 1 s |
| Frames per second | 32 fps |
| Triggering | SMA Connections (only K3M is triggerable) |
| Sensor cooling | Passive |
| Dark noise | 2.8 e- (median) |
| Full well capacity | 14000 e- |
| Dynamic Range | up to 72 dB |
| Bit depth / Colour depth | 3 x 12 -bit = 32-bit RGB, 12-bit mono |
| Binning options | 2x2 |
| Optical filter | 650 nm IR cut off filter |
| Operating system | Windows with LAS X application |
| Power consumption | 3 W |
| Operation temperature | 5 °C - 40 °C |
