微量注射幫浦

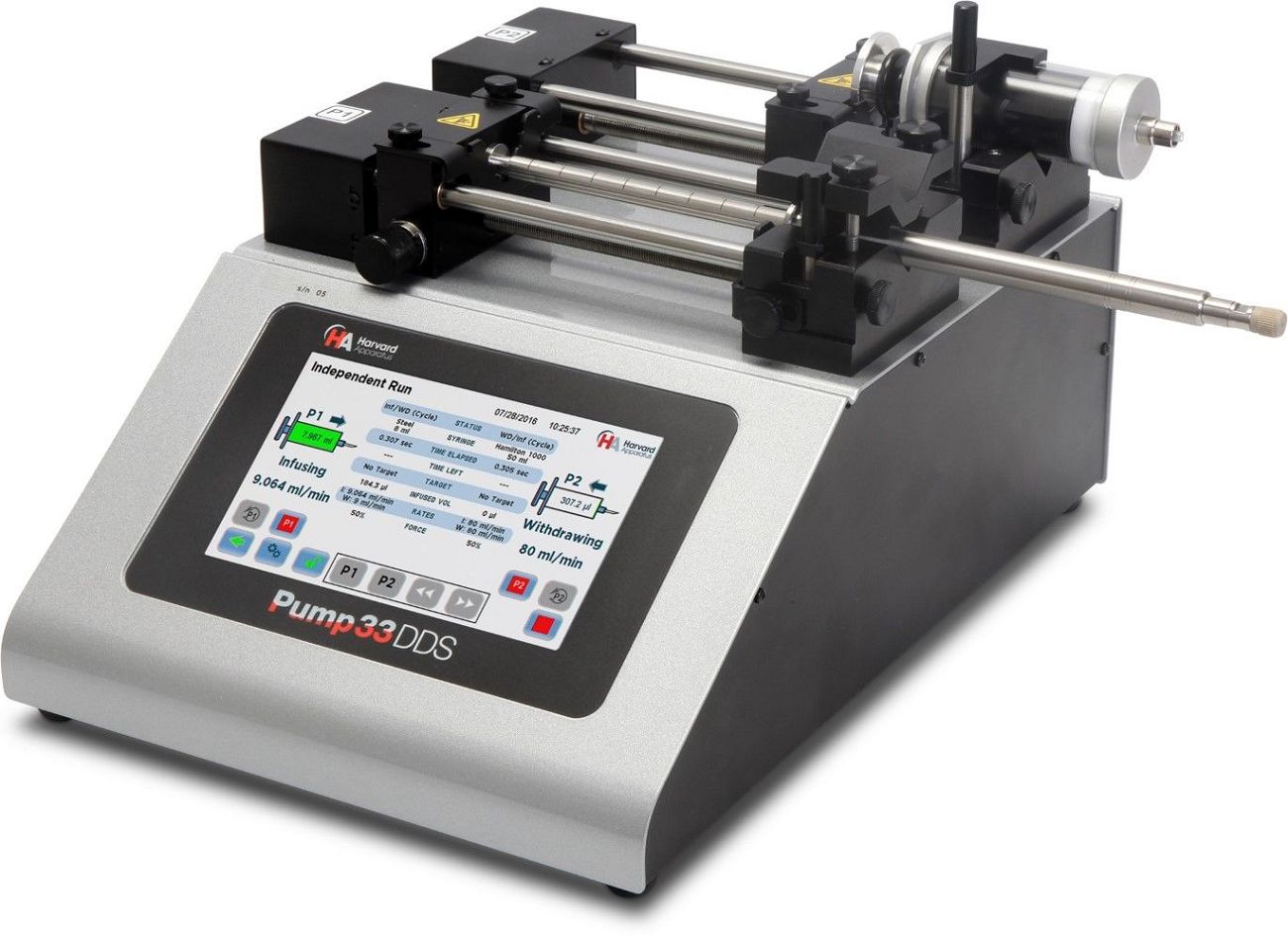

Pump 33 DDS (Dual Drive System)

The Harvard Apparatus Pump 33 DDS (Dual Drive System) is a leap forward in syringe pump capability. The Pump 33 DDS has two independent pumping channels controlled by an intuitive touch screen interface.

This multi-purpose syringe pump employs advanced syringe mechanisms that include a tight gripping, extremely secure syringe clamp that accommodates syringe sizes 0.5 µl to 60 ml. The Pump 33 DDS offers enhanced flow performance with high accuracy and smooth flow from 1.02 pl/min to 106 ml/min.

The new Harvard Apparatus Pump 33 DDS employs a graphical user interface controlled with a large 7” LCD Color Touchscreen.

Syringe tables containing all major syringe manufacturers allow simple selection of any compatible syringe size.

Audible Alarms, Adjustable Force and Screen Lock are all features that are available with the touch of the screen.

Features Include:

Two Independently Controlled pumping channels in one instrument
Run two separate flows using different directions,  flow rates, volumes and syringe sizes
Intuitive Icon Based Graphical User Interface controlled with a 7” LCD Color Touch Screen Display
Accommodates Syringe Sizes 0.5 µl to 60 ml
Smooth flow down to 1.02 pl/min
High accuracy ± 0.25%
USB, RS-232 & TTL Connectivity




UNIT SPECIFICATION	PARAMETER
Accuracy	± 0.25 %
Linear Force (Max, per syringe)	70 lb (31.75 kg) at 100% Force Setting up to a flow rate of 90 ml/min using up to a 60 ml syringe with a 32.573 mm inner diameter. 50 lb (22.6 kg) at 100% Force Setting for flow rates 90 ml/min to 106 ml/min using the same size syringe.
Syringe Size:	Two Independent syringe mechanisms (noted as syringe drive P1 & P2)
Minimum	0.5 µl  (0.103 mm minimum inner diameter)
Maximum	60 ml  (32.573 mm maximum inner diameter)*
Flow Rate:
Minimum	1.02 pl/min (0.5 ul syringe, 0.103 mm inner diameter)
Maximum	106 ml/min (60 ml syringe, 32.573 mm diameter )
Display	7" WQVGA TFT Color Display with Touch Screen
Modes of Operation:
Twin Condition	Both syringes of the same size operate identically (flow rate, direction & volume)
Independent Condition	Both syringes operate independently
Reciprocating Condition	Continuous flow, both syringes of the same size operate identically in opposite directions
Non-Volatile Memory	Stores all settings
Pump Command Control	ASCII Command Set
Real time Clock	Yes, with battery backup (battery included and required for real time clock)
Connectors:
Power	Barrel connector, (-) barrel (+) post 2 mm X 5 mm male plug
RS-485	IEEE-1394, 6 pos (Pump-to-pump communication only)
USB	Type B
RS-232	9 pin D-Sub Connector
(I/O) TTL	15-pin D-sub connector (one for each axis)
Footswitch Connections	Mini phono jack
Drive Motor	Two independent stepper motors
Motor Drive Control	MCU controlled
Step Rate:
Minimum	27 sec/µstep
Maximum	26 µsec/µstep
Stall Detection	Yes,  independent axis stall detection
Input Power	30 V, 2.0 A
Power Supply	Input 100 to 240 VAC, 50/60 Hz, Output 30 V 2.0 A, 50 Watts
Dimensions (L x D x H)	11 x 15 x 8 in (28 cm x 39 cm x 21 cm )

Standard Infuse/Withdraw Pump 11 Pico Plus Elite Programmable Syringe Pump


The Pump 11 Pico Plus Elite expands its capabilities to satisfy your experimental requirements. The Pump 11 Pico Plus Elite is the lowest flow, highest accuracy pump with unparalleled ease of use with a high resolution touch screen with intuitive icon interface. It can deliver volumes down to 0.54 pl/min. This infusion/withdrawal dual syringe pump is ideal for applications such as microdialysis. The Pump 11 Elite Series allows you to create, save and run simple to complex methods without a PC.

This syringe pump has a new mechanism that includes a tight gripping, more secure syringe clamp for syringes ranging from 0.5 µl to 10 ml (dual channel version) or 0.5 µl to 60 ml (single channel version). The Pump 11 Pico Plus Elite offers enhanced flow performance with high accuracy and smooth flow from 0.54 pl/min to 11.70 ml/min (dual channel version) or 0.54 pl/min to 39.77 ml (single channel version).

The Pump 11 Pico Plus Elite is an Infusion/Withdrawal Programmable Syringe Pump available in single or dual syringe configurations. This pump has advanced connectivity with a footswitch, USB serial port for computer control, RS-485 (or optional RJ-ll) ports for daisy chaining pumps and Digital I/O for remote control.

Please follow this link for microdialysis probes and guides.

Please follow this link for syringe options.

Please follow this link for tubing and connector options.



Specifications	70-4506	70-4511
Pump Configuration	Standard	Standard
Pump Function	Infusion/Withdrawal/Programmable	Infusion/Withdrawal/Programmable
Flow Rate Maximum	11.70 ml/min using 10 ml syringe	39.77 ml/min using 60 ml syringe
Flow Rate Minimum	0.54 pl/min using 0.5 µl syringe	0.54 pl/min using 0.5 µl syringe
Syringe Size Minimum	0.5 µl	0.5 µl
Syringe Size Maximum	10 ml	60 ml
Max Linear Force	35 lb @ 100% Force Selection	35 lb @ 100% Force Selection
I O TTL Connectors	15 pin D-Sub Connector	15 pin D-Sub Connector
RS 232 Connectors	optional RJ-11	optional RJ-11
USB Connectors	Type B	Type B
Accuracy	±0.35%	±0.35%
Non Volatile Memory	Storage of all settings	Storage of all settings
Drive Motor	0.9° Stepper Motor	0.9° Stepper Motor
Motor Drive Control	Microprocessor with 1/16 microstepping	Microprocessor with 1/16 microstepping
Number of Microsteps per one rev of Lead Screw	20,480	20,480
Step Rate Minimum	27.5 sec/µstep	27.5 sec/µstep
Step Rate Maximum	26 µsec/µstep	26 µsec/µstep
Step Resolution	0.031 µm/µstep	0.031 µm/µstep
Pusher Travel Rate Minimum	0.068 µm/min	0.068 µm/min
Pusher Travel Rate Maximum	71.55 mm/min	71.55 mm/min
Display	4.3" WQVGA TFT Color Display with Touchpad	4.3" WQVGA TFT Color Display with Touchpad
Input Power	12-30 VDC	12-30 VDC
Voltage Range	100-240 VAC, 50/60 Hz	100-240 VAC, 50/60 Hz
Dimensions, Control Box L x D x H	9.0 x 7.0 x 6.0 in (22.6 x 17.78 x 15.0 cm)

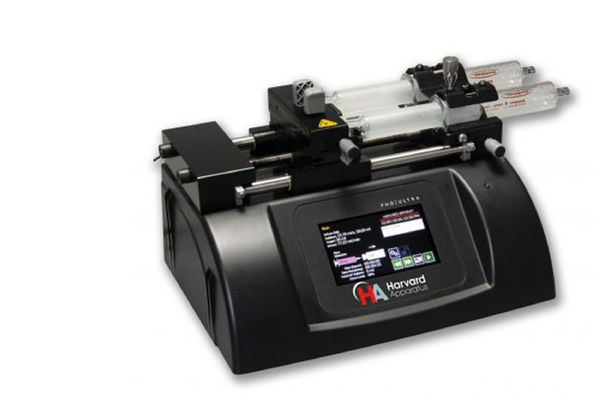

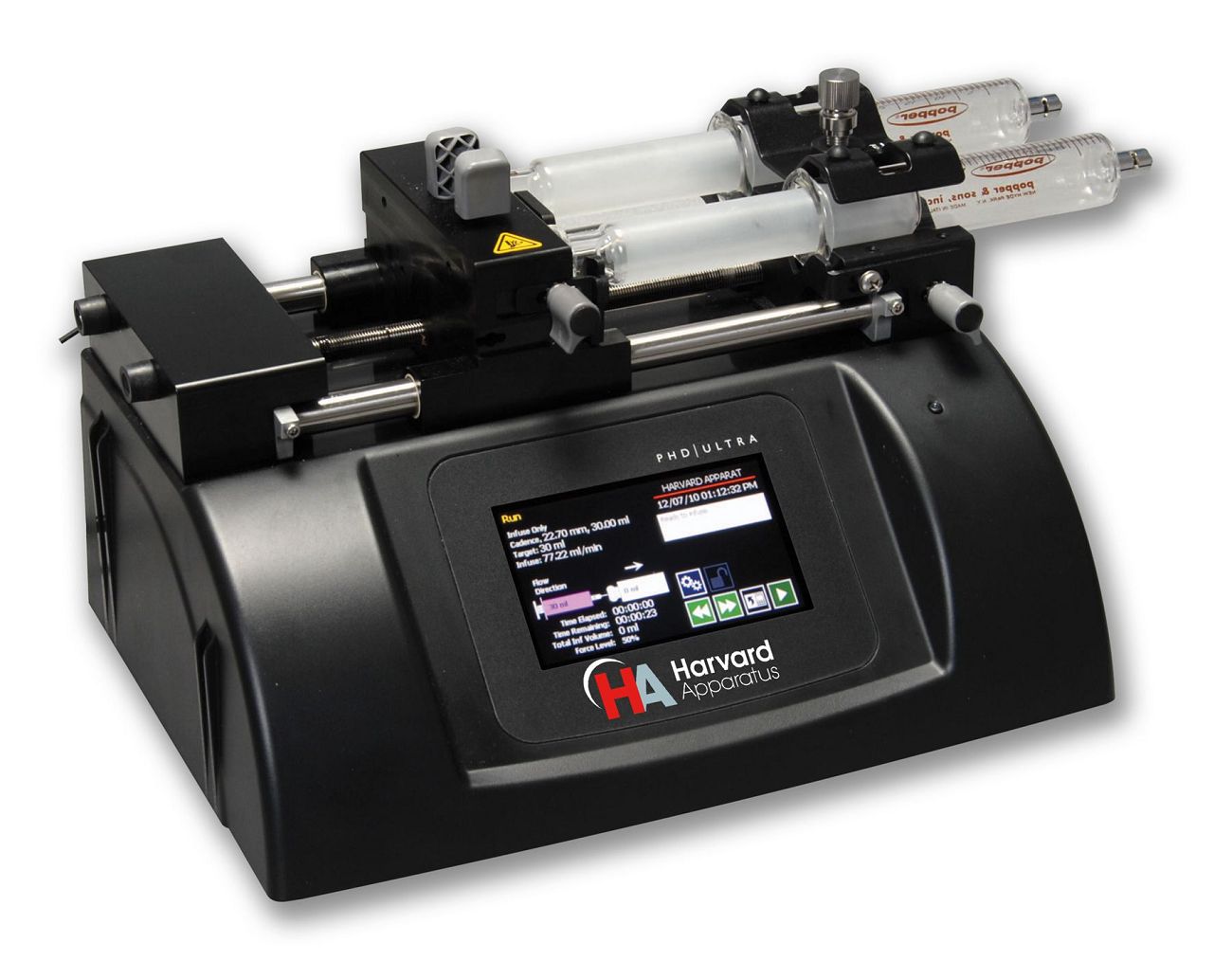

Standard Infuse/Withdraw PHD ULTRA™ Syringe Pumps

The PHD ULTRA™ is the solution for your most demanding fluidics applications. This pump represents the latest technology in syringe pumps and was developed utilizing the feedback of the world's largest populations of syringe pump users.

The PHD ULTRA™ will change the way you think about syringe pumps. There are three major areas which make the PHD ULTRA™ the new standard for syringe pumps:

1. Superior mechanical drive mechanism and syringe holding mechanics to achieve the highest performance of any syringe pump

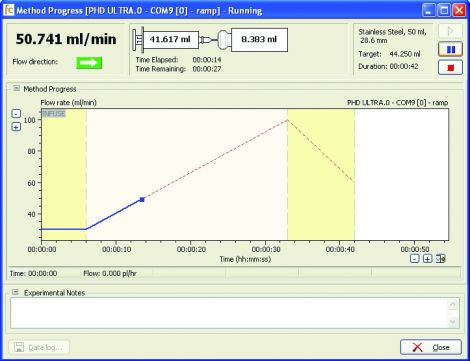

2. Integrated EZ PRO Software and user interface allow easy programming of methods from simple to complex, all without the use of a PC

• Preprogrammed methods for simple to complex operations that allow you to be up and running with the push of a button
• LCD, high resolution color touch screen for powerful functionality, yet easy to use

3. Multiple levels of versatility

• Configurations: push-pull, standard, remote, high pressure, multi racks
• Connectivity: RS-232 and USB for PC; RS-485 for pump to pump daisy chain

Please follow this link for syringe options.

Please follow this link for tubing and connector options.




Specifications	70-3006	70-3007	70-3008	70-3009
Accuracy	±0.25%	±0.25%	±0.25%	±0.25%
Classification	Class I
Dimensions, Control Box L xD x H	12.0 x 8.5 x 7.25 in (30.48 x 21.59 x 18.42 c,)
Display	4.3" WQVGA TFT Color Display with Touchpad
Drive Motor	0.9° Stepper Motor
Environmental Humidity	20% to 80% RH, non condensing
Environmental Operating Temperature	40°F to 104°F* (4°C to 40°C*)
Environmental Storage Temperature	14°F to 158°F(-10°C to 70°C)
Flow Rate Maximum	216 ml/min using 140 ml syringe
Flow Rate Minimum	1.56 pl/min using 0.5 µl syringe
I/O & TTL Connectors	15 pin D-Sub Connector
Input Power	50 W, 0.5 A fuse
Installation Category	II
Max Linear Force	75 lb @ 100% Force Selection
Mode of Operation	Continuous
Motor Drive Control	Microprocessor with 1/16 microstepping
Net Weight	10 lb (4.5 kg)
No of Syringes	2
Non Volatile Memory	Storage of all settings
Number of Microsteps per one rev of Lead Screw	12,800
Pollution Degree	1
Pump Configuration	Standard
Pump Function	Infuse/Withdraw
Pusher Travel Rate Maximum	190.8 mm/min
Pusher Travel Rate Minimum	0.18 µm/min
Regulatory Certifications	CE, UL, CSA, CB Scheme, EU RoHS
Step Rate Maximum	26 µsec/µstep
Step Rate Minimum	27.5 sec/µstep
Syringe Rack Type	Standard Rack
Syringe Size Maximum	140 ml
Syringe Size Minimum	0.5 µl
USB Connectors	Type B
Voltage Range	100-240 VAC, 50/60 Hz
RS 232 Connectors	9 pin D-Sub Connector





---

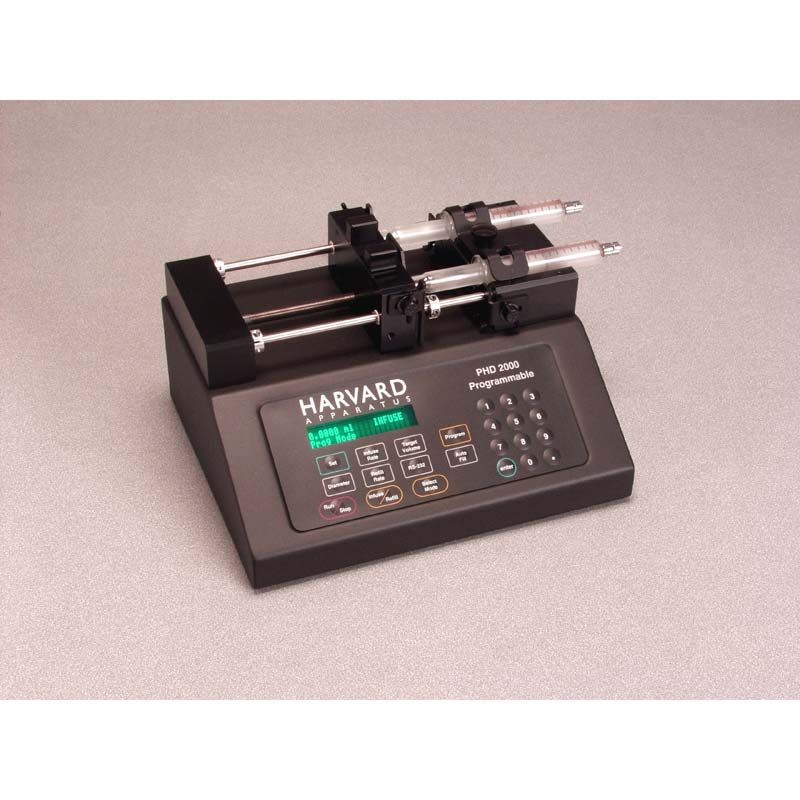

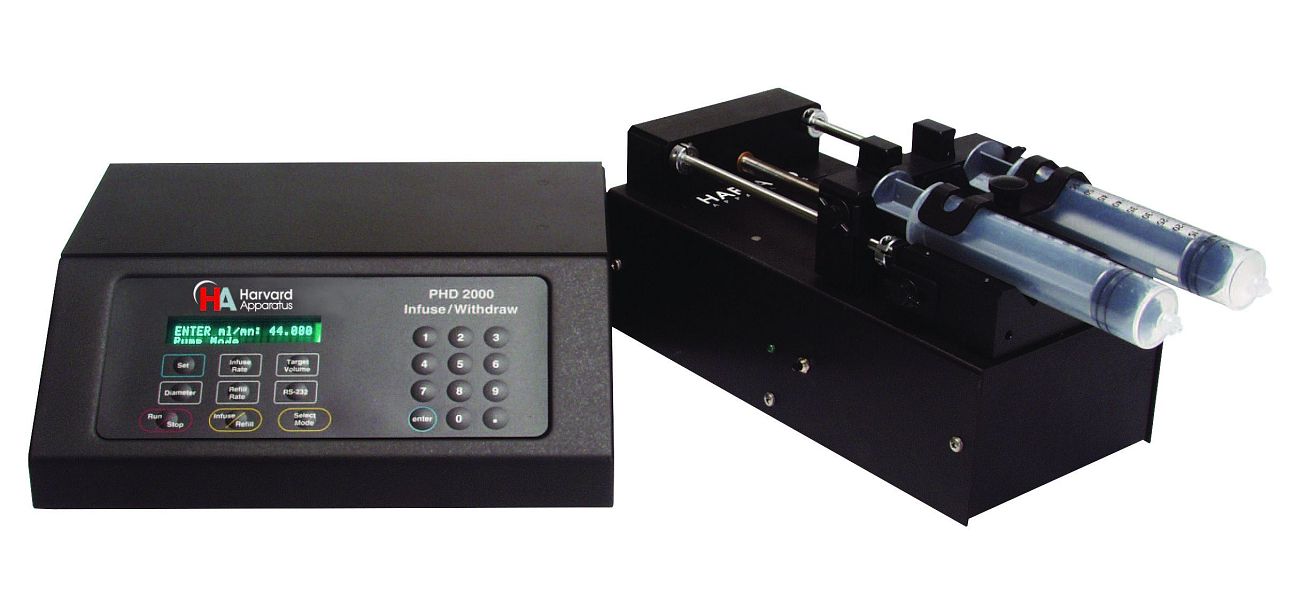

Remote Infuse/Withdraw PHD 22/2000 Syringe Pumps

Note: The Harvard Apparatus PHD 22/2000 Advance Syringe Pump family will be discontinued in 2020. Our PHD ULTRA™ series of syringe pumps offer a superior touch-screen replacement for the PHD 22/2000 with improved accuracy and precision. The PHD ULTRA™ LCD color touch screen display and intuitive icon interface provide unparalleled ease of use so you can efficiently program simple to complex pumping methods without a PC. Please follow this link to see the comparable PHD ULTRA™ models.

The Harvard PHD 22/2000 Remote Infuse/Withdraw remote syringe pump allows the pumping mechanism to be operated remotely by a tethered controller. The control box and pumping mechanism are separated by a 9.1-meter (30-foot) cable. This pump is available in infuse/withdraw and programmable models.

All pumps have RS-232 communications capabilities, but there are also PHD 22/2000 pumps that are programmable directly from the keypad.

In addition, a multitude of syringe racks are available to hold 2, 4 or up to 10 syringes. A microliter syringe rack is also available for microliter applications.

Please follow this link for syringe options.

Please follow this link for tubing and connector options.



Specifications	70-2101	71-2101	70-2102	71-2102	70-2106	71-2106	70-2107	71-2107	70-2108	71-2108	70-2109	71-2109	70-2110	71-2110	70-2111	71-2111	70-2119	71-2119	70-2120	71-2120
# of Syringes	2	2	2	2	6/10	6/10	4	4	4	4	6/10	6/10	4	4	4	4	4	4	4	4
Accuracy	±0.35%	±0.35%	±0.35%	±0.35%	±0.35%	±0.35%	±0.35%	±0.35%	±0.35%	±0.35%	±0.35%	±0.35%	±0.35%	±0.35%	±0.35%	±0.35%	±0.35%	±0.35%	±0.35%	±0.35%
Average Linear Force	50 lbs (23 kg)	66 lbs (30 kg)	50 lbs (23 kg)	66 lbs (30 kg)	50 lbs (23 kg)	66 lbs (30 kg)	50 lbs (23 kg)	66 lbs (30 kg)	50 lbs (23 kg)	66 lbs (30 kg)	50 lbs (23 kg)	66 lbs (30 kg)	50 lbs (23 kg)	66 lbs (30 kg)	50 lbs (23 kg)	66 lbs (30 kg)	50 lbs (23 kg)	66 lbs (30 kg)	50 lbs (23 kg)	66 lbs (30 kg)
Cable Length English	30 ft	30 ft	30 ft	30 ft	30 ft	30 ft	30 ft	30 ft	30 ft	30 ft	30 ft	30 ft	30 ft	30 ft	30 ft	30 ft	30 ft	30 ft	30 ft	30 ft
Cable Length Metric	9.1 m	9.1 m	9.1 m	9.1 m	9.1 m	9.1 m	9.1 m	9.1 m	9.1 m	9.1 m	9.1 m	9.1 m	9.1 m	9.1 m	9.1 m	9.1 m	9.1 m	9.1 m	9.1 m	9.1 m
Communications	RS-232, TTL	RS-232, TTL	RS-232, TTL, programmable	RS-232, TTL, programmable	RS-232, TTL	RS-232, TTL	RS-232, TTL	RS-232, TTL	RS-232, TTL	RS-232, TTL	RS-232, TTL programmable	RS-232, TTL programmable	RS-232, TTL, programmable	RS-232, TTL, programmable	RS-232, TTL, programmable	RS-232, TTL, programmable	RS-232, TTL, programmable	RS-232, TTL, programmable	RS-232, TTL	RS-232, TTL
Communications Level	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2
Depth English	11 in	11 in	11 in	11 in	11 in	11 in	11 in	11 in	11 in	11 in	11 in	11 in	11 in	11 in	11 in	11 in	11 in	11 in	11 in	11 in
Depth Metric	27.9 cm	27.9 cm	27.9 cm	27.9 cm	27.9 cm	27.9 cm	27.9 cm	27.9 cm	27.9 cm	27.9 cm	27.9 cm	27.9 cm	27.9 cm	27.9 cm	27.9 cm	27.9 cm	27.9 cm	27.9 cm	27.9 cm	27.9 cm
Display	Fluorescent, 2-line, 40 character	Fluorescent, 2-line, 40 character	Fluorescent, 2-line, 40 character	Fluorescent, 2-line, 40 character	Fluorescent, 2-line, 40 character	Fluorescent, 2-line, 40 character	Fluorescent, 2-line, 40 character	Fluorescent, 2-line, 40 character	Fluorescent, 2-line, 40 character	Fluorescent, 2-line, 40 character	Fluorescent, 2-line, 40 character	Fluorescent, 2-line, 40 character	Fluorescent, 2-line, 40 character	Fluorescent, 2-line, 40 character	Fluorescent, 2-line, 40 character	Fluorescent, 2-line, 40 character	Fluorescent, 2-line, 40 character	Fluorescent, 2-line, 40 character	Fluorescent, 2-line, 40 character	Fluorescent, 2-line, 40 character
Flow Rate Maximum	220.82 ml/min	220.82 ml/min	220.82 ml/min	220.82 ml/min	106.76 ml/min	106.76 ml/min	220.82 ml/min	220.82 ml/min	31.48 ml/min	31.48 ml/min	106.76 ml/min	106.76 ml/min	220.82 ml/min	220.82 ml/min	31.48 ml/min	31.48 ml/min	220.82 ml/min	220.82 ml/min	220.82 ml/min	220.82 ml/min
Flow Rate Minimum	0.0001 ul/hr	0.0001 ul/hr	0.0001 ul/hr	0.0001 ul/hr	0.0001 ul/hr	0.0001 ul/hr	0.0001 ul/hr	0.0001 ul/hr	0.0001 ul/hr	0.0001 ul/hr	0.0001 ul/hr	0.0001 ul/hr	0.0001 ul/hr	0.0001 ul/hr	0.0001 ul/hr	0.0001 ul/hr	0.0001 ul/hr	0.0001 ul/hr	0.0001 ul/hr	0.0001 ul/hr
Height English	6.3 in	6.3 in	6.3 in	6.3 in	6.3 in	6.3 in	6.3 in	6.3 in	6.3 in	6.3 in	6.3 in	6.3 in	6.3 in	6.3 in	6.3 in	6.3 in	6.3 in	6.3 in	6.3 in	6.3 in
Height Metric	15.9 cm	15.9 cm	15.9 cm	15.9 cm	15.9 cm	15.9 cm	15.9 cm	15.9 cm	15.9 cm	15.9 cm	15.9 cm	15.9 cm	15.9 cm	15.9 cm	15.9 cm	15.9 cm	15.9 cm	15.9 cm	15.9 cm	15.9 cm
Input Power	0.5 A, 65 W	0.5 A, 65 W	0.5 A, 65 W	0.5 A, 65 W	0.5 A, 65 W	0.5 A, 65 W	0.5 A, 65 W	0.5 A, 65 W	0.5 A, 65 W	0.5 A, 65 W	0.5 A, 65 W	0.5 A, 65 W	0.5 A, 65 W	0.5 A, 65 W	0.5 A, 65 W	0.5 A, 65 W	0.5 A, 65 W	0.5 A, 65 W	0.5 A, 65 W	0.5 A, 65 W
Motor	1/2 to 1/32 microstepping, microprocessor controlled, 1.8	1/2 to 1/32 microstepping, microprocessor controlled, 1.8	1/2 to 1/32 microstepping, microprocessor controlled, 1.8	1/2 to 1/32 microstepping, microprocessor controlled, 1.8	1/2 to 1/32 microstepping, microprocessor controlled, 1.8	1/2 to 1/32 microstepping, microprocessor controlled, 1.8	1/2 to 1/32 microstepping, microprocessor controlled, 1.8	1/2 to 1/32 microstepping, microprocessor controlled, 1.8	1/2 to 1/32 microstepping, microprocessor controlled, 1.8	1/2 to 1/32 microstepping, microprocessor controlled, 1.8	1/2 to 1/32 microstepping, microprocessor controlled, 1.8	1/2 to 1/32 microstepping, microprocessor controlled, 1.8	1/2 to 1/32 microstepping, microprocessor controlled, 1.8	1/2 to 1/32 microstepping, microprocessor controlled, 1.8	1/2 to 1/32 microstepping, microprocessor controlled, 1.8	1/2 to 1/32 microstepping, microprocessor controlled, 1.8	1/2 to 1/32 microstepping, microprocessor controlled, 1.8	1/2 to 1/32 microstepping, microprocessor controlled, 1.8	1/2 to 1/32 microstepping, microprocessor controlled, 1.8	1/2 to 1/32 microstepping, microprocessor controlled, 1.8
Motor Stepper 1 Revolution of Lead Screw	800 at 1/2 stepping to 12,800 at 1/32 stepping	800 at 1/2 stepping to 12,800 at 1/32 stepping	800 at 1/2 stepping to 12,800 at 1/32 stepping	800 at 1/2 stepping to 12,800 at 1/32 stepping	800 at 1/2 stepping to 12,800 at 1/32 stepping	800 at 1/2 stepping to 12,800 at 1/32 stepping	800 at 1/2 stepping to 12,800 at 1/32 stepping	800 at 1/2 stepping to 12,800 at 1/32 stepping	800 at 1/2 stepping to 12,800 at 1/32 stepping	800 at 1/2 stepping to 12,800 at 1/32 stepping	800 at 1/2 stepping to 12,800 at 1/32 stepping	800 at 1/2 stepping to 12,800 at 1/32 stepping	800 at 1/2 stepping to 12,800 at 1/32 stepping	800 at 1/2 stepping to 12,800 at 1/32 stepping	800 at 1/2 stepping to 12,800 at 1/32 stepping	800 at 1/2 stepping to 12,800 at 1/32 stepping	800 at 1/2 stepping to 12,800 at 1/32 stepping	800 at 1/2 stepping to 12,800 at 1/32 stepping	800 at 1/2 stepping to 12,800 at 1/32 stepping	800 at 1/2 stepping to 12,800 at 1/32 stepping
Net Weight English	10 lbs	10 lbs	10 lbs	10 lbs	10 lbs	10 lbs	10 lbs	10 lbs	10 lbs	10 lbs	10 lbs	10 lbs	10 lbs	10 lbs	10 lbs	10 lbs	10 lbs	10 lbs	10 lbs	10 lbs
Net Weight Metric	4.5 kg	4.5 kg	4.5 kg	4.5 kg	4.5 kg	4.5 kg	4.5 kg	4.5 kg	4.5 kg	4.5 kg	4.5 kg	4.5 kg	4.5 kg	4.5 kg	4.5 kg	4.5 kg	4.5 kg	4.5 kg	4.5 kg	4.5 kg
Non Volatile Memory	Storage of all settings	Storage of all settings	Storage of all settings	Storage of all settings	Storage of all settings	Storage of all settings	Storage of all settings	Storage of all settings	Storage of all settings	Storage of all settings	Storage of all settings	Storage of all settings	Storage of all settings	Storage of all settings	Storage of all settings	Storage of all settings	Storage of all settings	Storage of all settings	Storage of all settings	Storage of all settings
Pressure	Standard	Medium	Standard	Medium	Standard	Medium	Standard	Medium	Standard	Medium	Standard	Medium	Standard	Medium	Standard	Medium	Standard	Medium	Standard	Medium
Pump Configuration	Remote	Remote	Remote	Remote	Remote	Remote	Remote	Remote	Remote	Remote	Remote	Remote	Remote	Remote	Remote	Remote	Remote	Remote	Remote	Remote
Pump Function	Infuse/Withdraw	Infuse/Withdraw	Infuse/Withdraw, programmable	Infuse/Withdraw, programmable	Infuse/Withdraw	Infuse/Withdraw	Infuse/Withdraw	Infuse/Withdraw	Infuse/Withdraw	Infuse/Withdraw	Infuse/Withdraw, programmable	Infuse/Withdraw, programmable	Infuse/Withdraw, programmable	Infuse/Withdraw, programmable	Infuse/Withdraw, programmable	Infuse/Withdraw, programmable	Infuse/Withdraw, programmable	Infuse/Withdraw, programmable	Infuse/Withdraw	Infuse/Withdraw
Pusher Travel Rate Maximum	190.676 mm/min	190.676 mm/min	190.676 mm/min	190.676 mm/min	190.676 mm/min	190.676 mm/min	190.676 mm/min	190.676 mm/min	190.676 mm/min	190.676 mm/min	190.676 mm/min	190.676 mm/min	190.676 mm/min	190.676 mm/min	190.676 mm/min	190.676 mm/min	190.676 mm/min	190.676 mm/min	190.676 mm/min	190.676 mm/min
Pusher Travel Rate Minimum	0.18 um/min	0.18 um/min	0.18 um/min	0.18 um/min	0.18 um/min	0.18 um/min	0.18 um/min	0.18 um/min	0.18 um/min	0.18 um/min	0.18 um/min	0.18 um/min	0.18 um/min	0.18 um/min	0.18 um/min	0.18 um/min	0.18 um/min	0.18 um/min	0.18 um/min	0.18 um/min
RS-232	RJ11-4 Connector	RJ11-4 Connector	RJ11-4 Connector	RJ11-4 Connector	RJ11-4 Connector	RJ11-4 Connector	RJ11-4 Connector	RJ11-4 Connector	RJ11-4 Connector	RJ11-4 Connector	RJ11-4 Connector	RJ11-4 Connector	RJ11-4 Connector	RJ11-4 Connector	RJ11-4 Connector	RJ11-4 Connector	RJ11-4 Connector	RJ11-4 Connector	RJ11-4 Connector	RJ11-4 Connector
Step Rate Maximum	416.7 usec/step	416.7 usec/step	416.7 usec/step	416.7 usec/step	416.7 usec/step	416.7 usec/step	416.7 usec/step	416.7 usec/step	416.7 usec/step	416.7 usec/step	416.7 usec/step	416.7 usec/step	416.7 usec/step	416.7 usec/step	416.7 usec/step	416.7 usec/step	416.7 usec/step	416.7 usec/step	416.7 usec/step	416.7 usec/step
Step Rate Minimum	27.3 sec/step	27.3 sec/step	27.3 sec/step	27.3 sec/step	27.3 sec/step	27.3 sec/step	27.3 sec/step	27.3 sec/step	27.3 sec/step	27.3 sec/step	27.3 sec/step	27.3 sec/step	27.3 sec/step	27.3 sec/step	27.3 sec/step	27.3 sec/step	27.3 sec/step	27.3 sec/step	27.3 sec/step	27.3 sec/step
Step Resolution	0.082 um/step	0.082 um/step	0.082 um/step	0.082 um/step	0.082 um/step	0.082 um/step	0.082 um/step	0.082 um/step	0.082 um/step	0.082 um/step	0.082 um/step	0.082 um/step	0.082 um/step	0.082 um/step	0.082 um/step	0.082 um/step	0.082 um/step	0.082 um/step	0.082 um/step	0.082 um/step
Syringe Rack Type	Standard Rack	Standard Rack	Standard Rack	Standard Rack	6/10 Multi-Syringe Rack	6/10 Multi-Syringe Rack	4 x 140 ml Syringe Rack	4 x 140 ml Syringe Rack	Microliter Syringe Rack	Microliter Syringe Rack	6/10 Multi-Syringe Rack	6/10 Multi-Syringe Rack	4 x 140 ml Syringe Rack	4 x 140 ml Syringe Rack	Microliter Syringe Rack	Microliter Syringe Rack	Push/Pull Syringe Rack	Push/Pull Syringe Rack	Push/Pull Syringe Rack	Push/Pull Syringe Rack
Syringe Size Maximum	140 ml	140 ml	140 ml	140 ml	60 ml	60 ml	140 ml	140 ml	10 ml	10 ml	60 ml	60 ml	140 ml	140 ml	10 ml	10 ml	140 ml	140 ml	140 ml	140 ml
Syringe Size Minimum	0.5 ul	0.5 ul	0.5 ul	0.5 ul	0.5 ul	0.5 ul	0.5 ul	0.5 ul	0.5 ul	0.5 ul	0.5 ul	0.5 ul	0.5 ul	0.5 ul	0.5 ul	0.5 ul	0.5 ul	0.5 ul	0.5 ul	0.5 ul
TTL	9-pin connector D-sub.	9-pin connector D-sub.	9-pin connector D-sub.	9-pin connector D-sub.	9-pin connector D-sub.	9-pin connector D-sub.	9-pin connector D-sub.	9-pin connector D-sub.	9-pin connector D-sub.	9-pin connector D-sub.	9-pin connector D-sub.	9-pin connector D-sub.	9-pin connector D-sub.	9-pin connector D-sub.	9-pin connector D-sub.	9-pin connector D-sub.	9-pin connector D-sub.	9-pin connector D-sub.	9-pin connector D-sub.	9-pin connector D-sub.
Type	Microprocessor multiple syringe, infusion only or infuse/withdraw, some models programmable from keypad	Microprocessor multiple syringe, infusion only or infuse/withdraw, some models programmable from keypad	Microprocessor multiple syringe, infusion only or infuse/withdraw, some models programmable from keypad	Microprocessor multiple syringe, infusion only or infuse/withdraw, some models programmable from keypad	Microprocessor multiple syringe, infusion only or infuse/withdraw, some models programmable from keypad	Microprocessor multiple syringe, infusion only or infuse/withdraw, some models programmable from keypad	Microprocessor multiple syringe, infusion only or infuse/withdraw, some models programmable from keypad	Microprocessor multiple syringe, infusion only or infuse/withdraw, some models programmable from keypad	Microprocessor multiple syringe, infusion only or infuse/withdraw, some models programmable from keypad	Microprocessor multiple syringe, infusion only or infuse/withdraw, some models programmable from keypad	Microprocessor multiple syringe, infusion only or infuse/withdraw, some models programmable from keypad	Microprocessor multiple syringe, infusion only or infuse/withdraw, some models programmable from keypad	Microprocessor multiple syringe, infusion only or infuse/withdraw, some models programmable from keypad	Microprocessor multiple syringe, infusion only or infuse/withdraw, some models programmable from keypad	Microprocessor multiple syringe, infusion only or infuse/withdraw, some models programmable from keypad	Microprocessor multiple syringe, infusion only or infuse/withdraw, some models programmable from keypad	Microprocessor multiple syringe, infusion only or infuse/withdraw, some models programmable from keypad	Microprocessor multiple syringe, infusion only or infuse/withdraw, some models programmable from keypad	Microprocessor multiple syringe, infusion only or infuse/withdraw, some models programmable from keypad	Microprocessor multiple syringe, infusion only or infuse/withdraw, some models programmable from keypad
Voltage Range	Selectable, 95 to 130 VAC, 60 Hz or 220 to 260 VAC, 50 Hz	Selectable, 95 to 130 VAC, 60 Hz or 220 to 260 VAC, 50 Hz	Selectable, 95 to 130 VAC, 60 Hz or 220 to 260 VAC, 50 Hz	Selectable, 95 to 130 VAC, 60 Hz or 220 to 260 VAC, 50 Hz	Selectable, 95 to 130 VAC, 60 Hz or 220 to 260 VAC, 50 Hz	Selectable, 95 to 130 VAC, 60 Hz or 220 to 260 VAC, 50 Hz	Selectable, 95 to 130 VAC, 60 Hz or 220 to 260 VAC, 50 Hz	Selectable, 95 to 130 VAC, 60 Hz or 220 to 260 VAC, 50 Hz	Selectable, 95 to 130 VAC, 60 Hz or 220 to 260 VAC, 50 Hz	Selectable, 95 to 130 VAC, 60 Hz or 220 to 260 VAC, 50 Hz	Selectable, 95 to 130 VAC, 60 Hz or 220 to 260 VAC, 50 Hz	Selectable, 95 to 130 VAC, 60 Hz or 220 to 260 VAC, 50 Hz	Selectable, 95 to 130 VAC, 60 Hz or 220 to 260 VAC, 50 Hz	Selectable, 95 to 130 VAC, 60 Hz or 220 to 260 VAC, 50 Hz	Selectable, 95 to 130 VAC, 60 Hz or 220 to 260 VAC, 50 Hz	Selectable, 95 to 130 VAC, 60 Hz or 220 to 260 VAC, 50 Hz	Selectable, 95 to 130 VAC, 60 Hz or 220 to 260 VAC, 50 Hz	Selectable, 95 to 130 VAC, 60 Hz or 220 to 260 VAC, 50 Hz	Selectable, 95 to 130 VAC, 60 Hz or 220 to 260 VAC, 50 Hz	Selectable, 95 to 130 VAC, 60 Hz or 220 to 260 VAC, 50 Hz
Width English	9 in	9 in	9 in	9 in	9 in	9 in	9 in	9 in	9 in	9 in	9 in	9 in	9 in	9 in	9 in	9 in	9 in	9 in	9 in	9 in
Width Metric	22.8 cm	22.8 cm	22.8 cm	22.8 cm	22.8 cm	22.8 cm	22.8 cm	22.8 cm	22.8





---

---
